Stainless steel metal dome switches with tactile snap or non-tactile smooth feel. Force range 50-600g. Life up to 2M cycles. For PCB-mounted keypads in automotive, medical, remote controls, and instrumentation.
Request Quote →| Parameter | Value / Range |
|---|---|
| Material | Stainless steel (SUS301) |
| Dome Diameter | 4mm ~ 20mm (custom) |
| Actuation Force | 50g ~ 600g |
| Travel | 0.1mm ~ 1.0mm |
| Tactile Types | Tactile (snap) / Non-tactile (linear) |
| Tactile Life | ≥100,000 cycles |
| Non-Tactile Life | ≥2,000,000 cycles |
| Operating Temperature | -40°C ~ +85°C |
| Contact Resistance | <100mΩ |
| Carrier Material | PET film / Custom |
| Adhesive | 3M adhesive backing |
| Assembly | On PCB / FPC / membrane |
Snap-dome design gives a clear click feel for confident key presses.
Non-tactile option for quiet environments like medical clinics.
Precision-formed domes with ±5% force tolerance across batch.
Gold-plated or stainless steel surface for harsh environments.
Any array configuration — round, rectangular, custom shapes.
PCB mounting with PET carrier. Compatible with reflow soldering.
Metal dome switches provide reliable tactile feedback and long operational life in applications where positive user confirmation is essential. BestSwitch manufactures precision stainless steel dome arrays for the following sectors:

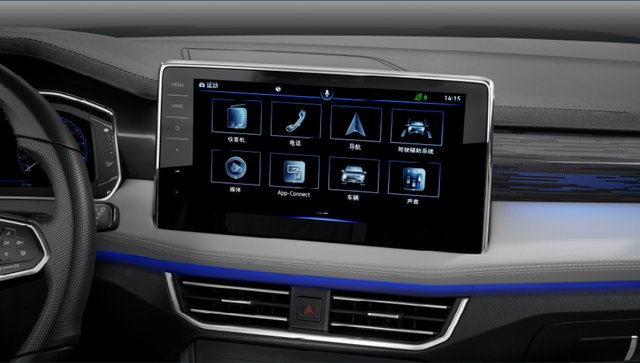

Modern vehicles incorporate dozens of switch functions on the dashboard, center console, and steering wheel. Our tactile metal dome arrays provide the crisp, unmistakable click feel that drivers need for eyes-free operation. With operating temperature range from -40°C to +85°C and corrosion-resistant stainless steel surfaces, these components meet automotive OEM durability requirements for 10+ year vehicle life.
Medical equipment — including defibrillators, patient monitors, and diagnostic cart controllers — requires keypads that deliver definitive tactile confirmation in high-stress clinical environments. Our non-tactile dome arrays offer silent operation for noise-sensitive hospital settings, while tactile versions provide the positive snap feedback preferred for critical function activation.
Consumer remote controls, garage door openers, keyless entry fobs, and security system keypads benefit from metal dome switches' compact footprint and excellent tactile feel. Our dome diameters from 4mm to 20mm accommodate dense key arrays in space-constrained portable device designs.
Metal dome customization includes: diameter (4mm to 20mm standard, custom shapes available), actuation force range (50g to 600g with ±5% batch consistency), dome height (0.3mm to 1.2mm), surface treatment (stainless steel, gold-plated, or nickel-plated), PET carrier film thickness, adhesive selection (3M medical-grade or industrial-grade), custom array patterns with mixed-force domes on a single carrier.
Quality control for metal dome products includes: force-displacement curve measurement on 100% of production domes using automated test stations, contact resistance verification (<100mΩ initial, <200mΩ after life testing), dimensional inspection with optical measuring equipment, adhesive peel strength testing, and life cycle testing: ≥100,000 cycles for tactile domes and ≥2,000,000 cycles for non-tactile versions. Temperature cycling tests (-40°C to +85°C, 100 cycles) validate structural integrity under thermal stress.
The mechanical behavior of a metal dome switch is determined by its geometry and material properties. Key dimensional parameters include the dome diameter (typically 4mm to 20mm), dome height (the apex height above the base plane, typically 0.3mm to 1.2mm), material thickness (0.05mm to 0.15mm for stainless steel), and the transition radius at the dome base. The force-displacement curve exhibits a characteristic snap-through behavior: force increases linearly with displacement during the initial compression phase, reaches a peak at the snap point, then drops abruptly as the dome collapses to the contact position. The ratio of the force drop to the peak force defines the tactile ratio, with values above 60% providing unmistakable tactile feedback and values below 40% providing a softer, more linear feel preferred for applications where noise is a concern.
Stainless steel grades SUS301 and SUS304 are the standard materials for metal dome production due to their excellent spring properties, corrosion resistance, and formability. SUS301 offers higher yield strength and better spring characteristics, making it suitable for domes requiring consistent force output over millions of cycles. SUS304 provides superior corrosion resistance for applications in humid or chemically aggressive environments. Surface finish options include natural stainless steel (matte appearance), nickel plating (providing enhanced corrosion resistance and improved electrical contact), and gold plating (offering the lowest contact resistance and highest reliability for low-voltage, low-current applications common in medical and precision instrumentation). The choice of surface finish directly impacts both contact resistance stability and environmental durability, and our engineering team can recommend the optimal finish based on the specific operating conditions of each application.
Metal domes are typically supplied on a PET carrier film that positions the domes in the correct array pattern for assembly to the PCB or membrane circuit layer. The carrier film serves several functions: maintaining dome-to-dome spacing during handling and assembly, providing a protective cover during soldering or adhesive bonding processes, and enabling automated pick-and-place assembly for high-volume production. Carrier film adhesion strength must be carefully controlled: strong enough to hold domes in place during handling but allowing clean release after PCB bonding. We offer custom carrier designs with alignment holes, registration marks, and peel tab features to facilitate automated assembly processes. For reflow soldering compatibility, our dome products are rated for peak temperatures of 260 degrees Celsius for up to 30 seconds, compatible with both lead-free and lead-based solder profiles.
Metal dome products from BestSwitch are manufactured and tested according to recognized industry standards for switch components. Our manufacturing processes follow IPC-6017 (qualification and performance specification for the fabrication of membrane switches) for circuit layer fabrication and assembly quality. Dome force-displacement characteristics are verified using automated test equipment calibrated to NIST-traceable standards, ensuring measurement accuracy within +/-1% of full scale. We also test for contact bounce characteristics (typically less than 1ms for clean switching behavior), contact debounce time optimization, and minimum contact resistance stability over the rated life of the product. For automotive-grade applications, dome products are qualified to AEC-Q100 stress test qualification requirements for passive components, including pre-conditioning, temperature cycling, humidity bias, and high-temperature storage life testing. This rigorous qualification process validates the reliability of our dome products across the full range of expected operating environments.
Temperature range for metal dome operation spans from -55 degrees Celsius to +125 degrees Celsius, suitable for both automotive under-hood environments and consumer electronics operating conditions. The dome's contact resistance is typically less than 1 ohm for gold-plated versions and less than 100 ohms for stainless steel versions without plating. Insulation resistance exceeds 100 megohms at 500 volts DC, and dielectric withstand voltage is tested at 250 volts DC for 60 seconds without breakdown or flashover. These electrical specifications ensure reliable operation in sensitive circuit applications where consistent signal quality is essential for proper system function.
We can tailor the design, materials, dimensions, and finish to your exact requirements. Send us your specifications for a free review.
